  • Datong Art Museum 1/4
    ≡ Cultural
    © Foster + Partners

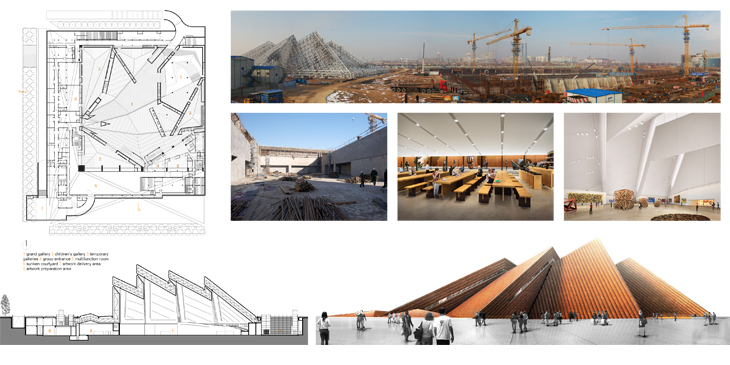

    i   The 36000m2 museum in Shanxi is conceived as an erupted landscape in the city’s new cultural plaza. The gallery level is set at
    -12m allowing the massive steel structure to create a 37m high gallery space. Entry takes place through a sunken plaza at the
    northeast corner. Smaller galleries, group entrance lobby, café, restaurant and support spaces are arranged around the grand
    gallery. A sunken courtyard surrounds the building from the south and west sides. Art preparation areas are housed under grade
    landscape. Construction started Oct 2011 and is set for completion Aug 2013.
  • Datong Art Museum 2/4
    ≡ Cultural
    © Foster + Partners & Beijing Jangho Curtain Wall

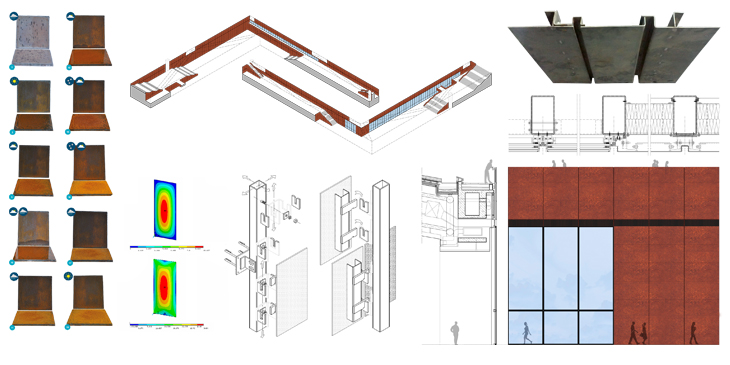

    i   The building is clad in 32000m2 earth-toned weathering steel + 4000m2 glazing. Coating is applied to the steel after 2 months of
    controlled weathering. Flat panels are installed at the courtyard while curved panels are used on the roof. The panels are top hung with
    6mm expansion joints horizontally and 40mm shadow gaps vertically at 2.5m grids. The cladding is designed as a rain-screen system
    with water proofing behind. The glazed areas consist of triple glazed heat-strengthened glass that is silicon bonded to aluminium
    carriers and mechanically retained by 12mm aluminium frames.
  • Datong Art Museum 3/4
    ≡ Cultural
    © Foster + Partners & Beijing Jangho Curtain Wall

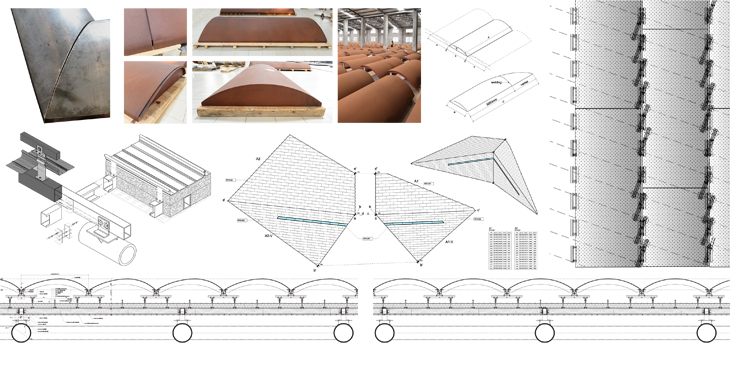

    i   The roof accounts for 70% of the exposed surface area. Skylights are carved out each of the four vertical roof surfaces. The eastern
    roof planes acts as panel form generators with 200mm deep single arc panels while the western panels are composite curve
    resultants. This ensures the two faces node out at the ridges. The panels are bent using CNC rollers while stiffening ribs are manually
    welded to the undersides. Each panel is attached to the standing seam through 12 flexible connection points. Typical panels measure
    3m in length while its width varies from 0.9m to 1.3m.
  • Datong Art Museum 4/4
    ≡ Cultural
    © Foster + Partners & Shanghai MCC Steel

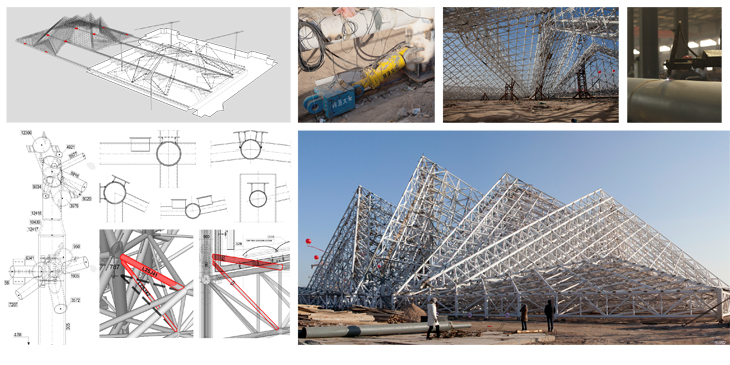

    i   The steel structure was coordinated through clash detection tests. Member assembly took place 180m south of the actual structure
    end location. Tube diameters range from 80-700mm with a truss depth of 3.5-4.5m spanning a maximum of 80m. Working on both
    the concrete and steel structure simultaneously, the team was able to save 5 months of construction time. After completion, the 4000
    ton structure will be slid along 6 tracks using 12 hydraulic crawlers. The process will last 5-7 days with speeds up to 8m/h. The load is
    then transferred onto plinths embedded in concrete shear walls.
